LC29H -DA and BS module configuration and latest firmware with documentation

IoT Modules GNSS Module
83

Hello,

Can I get the firmware for LC29HDA?

Current: LC29HDANR11A02S_RSA

Looks like I can’t get GPS or RTK to work.

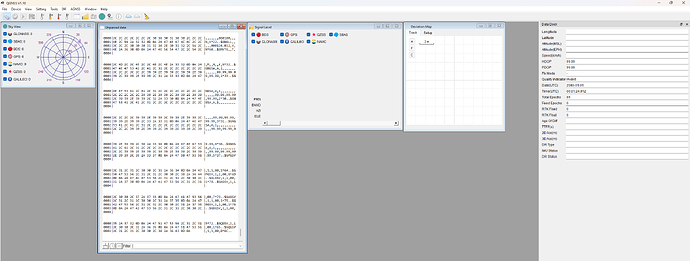

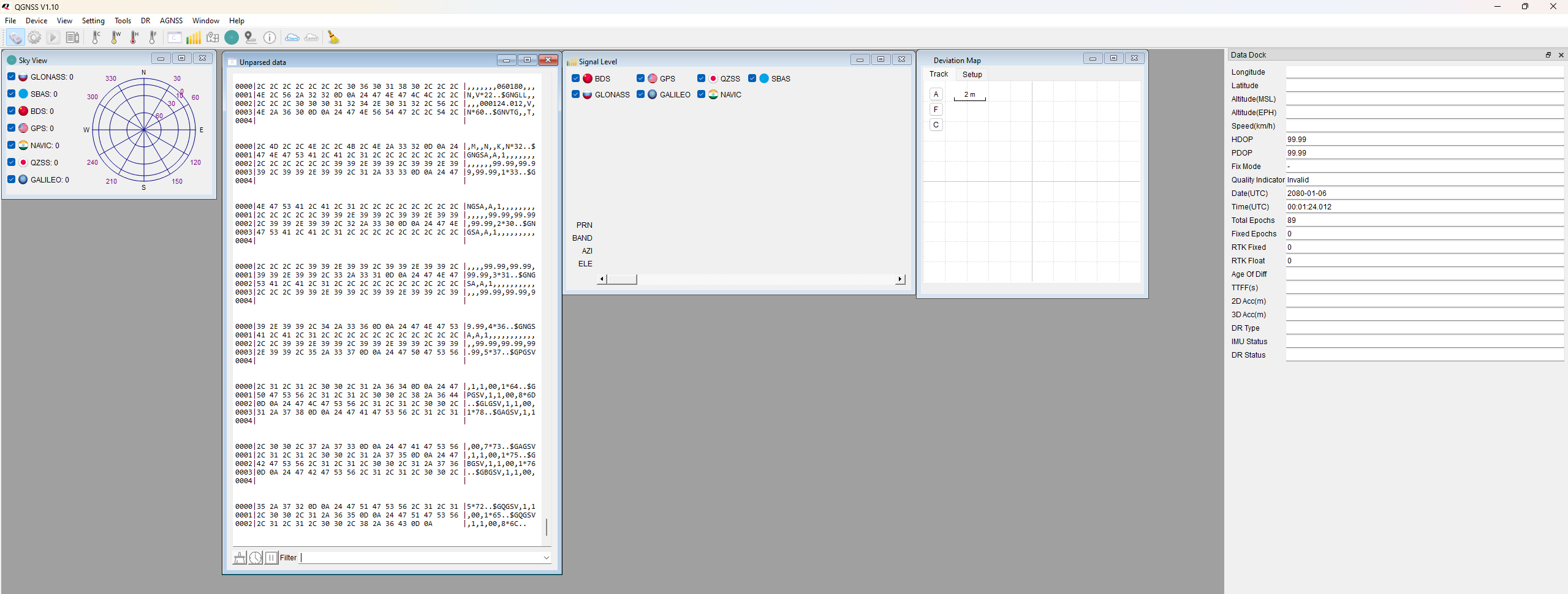

image2559×970 174 KB

84

Hi,

I have the LC29HBSMD it outputs strange characters and the firmware is out of date.

On starting I get:

[2025-02-02 16:53:36.876 Uart Tx:0008 B] QGae

[2025-02-02 16:53:36.973 Uart Rx:0013 B] PAIR012*39

[2025-02-02 16:53:37.211 Uart Tx:0015 B] $PQTMVERNO*58

[2025-02-02 16:53:37.211 Uart Tx:0018 B] $PQTMEGMR,R,5*62

[2025-02-02 16:53:37.288 Uart Rx:0084 B] $PQTMVERNO,LC29HBSNR11A01S,2023/02/13,10:14:06*27

$PQTMEGMR,OK,P1Y24DS25000119*26

[2025-02-02 16:53:37.806 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$1Ò@xú_ÓCÍa¶F’@<«ÓDma$1Ò@䍱ÓFMa#W@ ³ÔÓE­a$1Ð@…_

[2025-02-02 16:53:38.793 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$Ar@x]ÏÓCÍa¶V2@­j_ÓDma$Ar@ä*!ÓFMa#f²@®%ÒÓE­a$Ap@…·Ï

[2025-02-02 16:53:39.797 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$Q@Û{ÓCÍa¶eÒ@–K(ÓDma$Q@G ±ÓFMa#vR@¬}™ÓE­a$Q@&‘

[2025-02-02 16:53:40.785 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$²@|íYÓCÍa¶ur@aŠsÓDma$²@àš·ÓFMa#…ò@ D“ÓE­a$`°@aY

[2025-02-02 16:53:41.790 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$pR@~µÓCÍa¶…@ò˞ÓDma$pR@âÂüÓFMa#•’@bÓE­a$pP@ƒ_

[2025-02-02 16:53:42.794 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$ò@}+ÓCÍa¶”²@§»ˆÓDma$ò@ã

ÅÓFMa#¥2@`EHÓE­a$ð@‚—+

[2025-02-02 16:53:43.799 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$’@Š<ÆÓCÍa¶¤R@WÓÓDma$’@K(ÓFMa#´Ò@¦¬NÓE­a$@wÖÆ

[2025-02-02 16:53:44.804 Uart Rx:0165 B] Ó>ÝaÀ•ÍP¦B1—ÓC-a$Ÿ2@eýÓCÍa¶³ò@afÓDma$Ÿ2@‡ŠsÓFMa#Är@¦ ÞÓE­a$Ÿ0@æ

Can you supply a newer firmware:
$PQTMVERNO,LC29HBSNR11A01S,2023/02/13,10:14:06*27

Finally, I need to use this unit as a Rover, can I give it a command to put it into Rover mode? I have tried $PQTMCFGRCVRMODE,W,1*2A but nothing changes.

Thank you.

Rolf

85

Hi, @george.gao can I have latest FW for BS module also?
Current ver is $PQTMVERNO,LC29HBSNR11A01S,2023/02/13,10:14:06*27

86

Hi @george.gao

I got two modules, LC29HDA with LC29HDANR11A03S_RSA,2024/03/19,13:55:31
and LC29HEA with LC29HEANR11A03S_RSA,2023/10/31,16:52:14

Could you advise regarding the firmware? With both of them I cannot proceed beyond a “Single” fix…

Thanks,
Dmitry

87

Hi @Dmitry_K
Both of these are the latest versions.
Can’t single-point positioning, how did you test it? Can you take a complete picture of the test environment and test module including the antenna?

88

Hi George,

I can make a fix of type 1 (SPS) - but cannot advance to RTK.

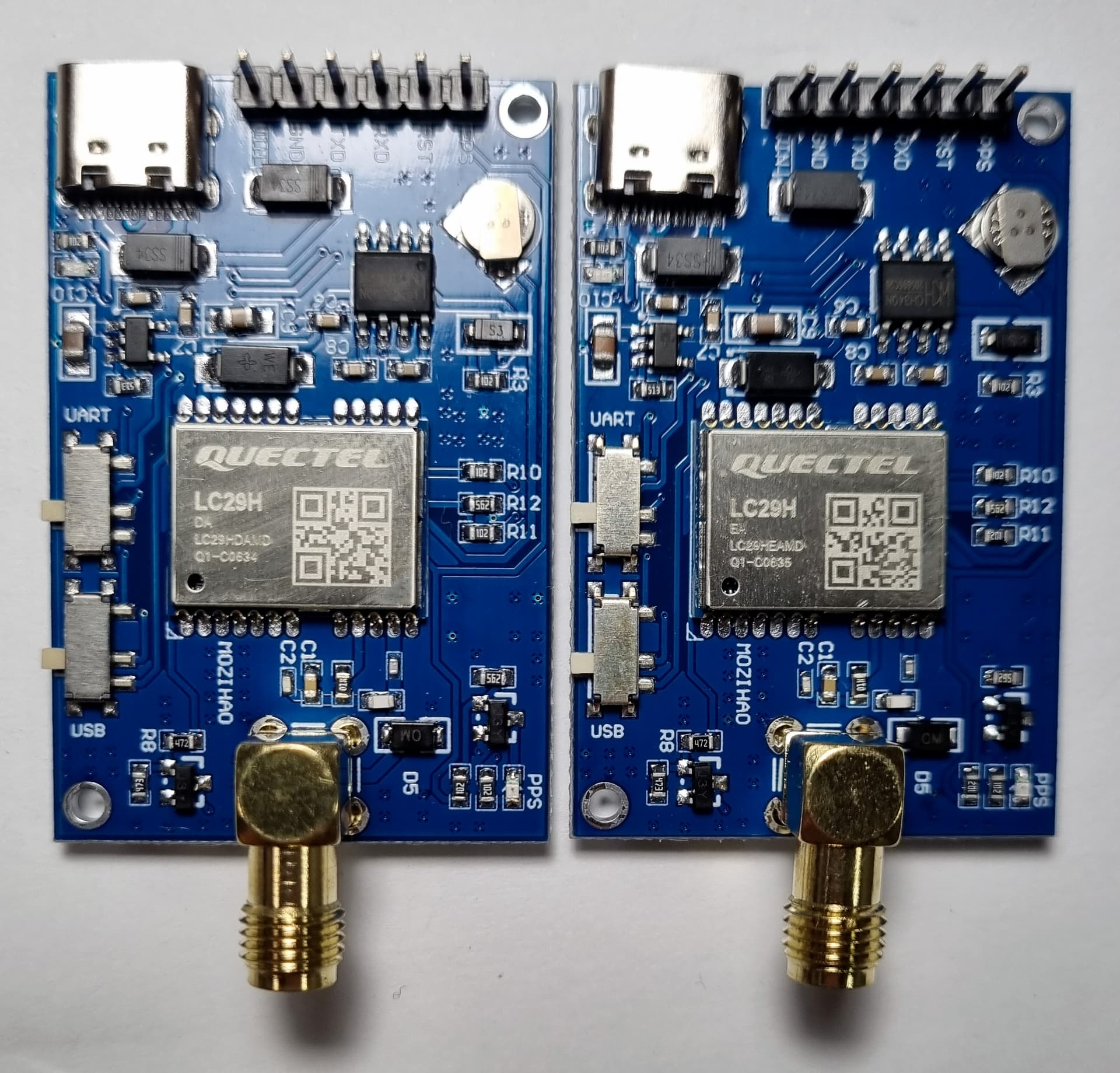

Attaching below my modules and antennas.

mod
mod1920×1839 358 KB

The environment is - just an open field. I am putting the antennas on a roof of my car.

Thanks,
Dmitry

89

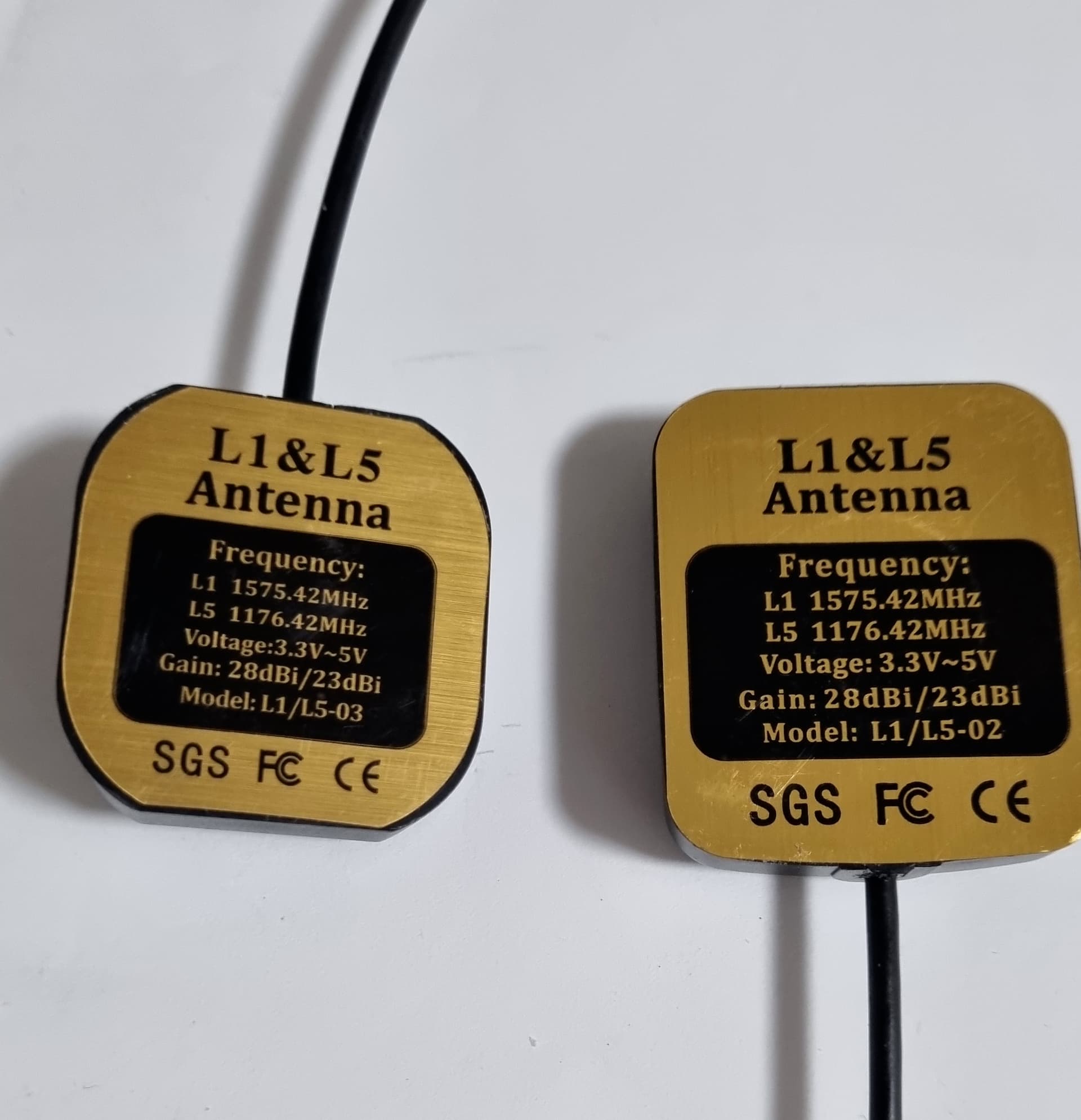

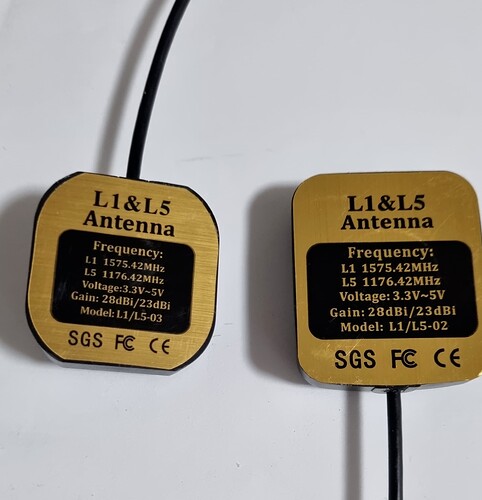

ant
ant1920×1989 143 KB

90

Hi @Dmitry_K
Have you injected base station data into the module? If yes, what base station information did you inject? How far is it from you?

91

Hi George,
I did multiple tests (in all of them the “external” station is BSHM00ISR0 from IGS network:

  1. Feed corrections from the external station, 17 km away of it (rural area)
  2. Feed corrections from the external station, ~200 m away of it (same university campus)
  3. Feed corrections from the external station, 1.7 km away of it (top of the hill, ~200 m above the station)
  4. Implement this article having HDA as a station and HEA as a rover - as well as vice versa, where their antennas are just next to each other.

BTW - could you suggest a sequence of commands, returning LC29HEA/HDA devices to a factory-default configuration?

Thanks,
Dmitry

92

immagine
caster is not useful with 1076 only …also posted poorly antennas that may impact performance.
Configure one module as base,fix location for 1005 rtcm value
$PQTMCFGSVIN,W,2,0,0,x,y,z*3B # set base location in XYZ coords
or the same in lat,lon.hei
$PAIR604,1,1,lat,lon,hei*CKSUM
add $PAIR436,1*26 ==> set RTCM3.x output with satellite ephemeris
for reset modules try

$PAIR382,1*2E → Test command for lock system sleep enabled
$PAIR003*39 → power off GNSS system
$PAIR514*3A  Clear the current configuration and restore the default settings set via $PAIR
$PAIR512*3C  clear all data
$PQTMRESTOREPAR*13 # restore $PQTM params to default
$PQTMSAVEPAR*5A
$PAIR023*3B   reboot  module
$PAIR007*3D → Full cold start and clears system and user configurations

U can use also rtklib by putting both modules in only rtcm output (as base) and do solution.
Regards

93

Please find below the station info:

BSHM00ISR_20230403.pdf (62.1 KB)

94

The characteristics contradict the caster in better…
Try using rtklib STRSVR

immagine
immagine719×479 22.4 KB

so you can monitor rtcm output of BSHM00ISR Site.My igf account has expired…

95

@george.gao
Could you provide me with firmware updates please?
I have two modules:

  1. PQTMVERNO,LC29HBSNR11A01S,2023/02/13,10:14:06
  2. PQTMVERNO,LC29HDANR11A03S_RSA,2024/03/19,13:55:31

Also: the BS version ALWAYS responds with PAIR012. Whatever message i sent…

Thanks in advance

96

Hi @WernerT
I have sent you the relevant information via email, please check.

97

@george.gao I have the same problem. Can i get the information? Thanks a lot

98

My current version of firmware is:

$PQTMVERNO,LC29HDANR11A03S_RSA,2024/03/19,13:55:31*20

I am not seeing any Beidou satellites. Could it be a version issue? If there is a newer version please send it my way. Thanks!

99

Hi @Piotr_Soltys @David_Rice
I have sent you the relevant information via email, please check.
Hi @David_Rice
Please test in an open environment and check whether the antenna specification you are using supports the BDS satellite frequency band.

100

Hi!
I need latest firmware
$PQTMVERNO,LC29HDANR11A01S_RSA,2023/03/02,12:43:39*21
Thx Balazs

101

I have the same problem (BS version ALWAYS responds with PAIR012). Can i get the information?

102

Ok. I found the solution. The problem was a strangely behaving usb-ttl converter on the ch340G chip
