UMTS & LTE EVB kit and EG915N Submodule Schematics

Technical Subjects
1

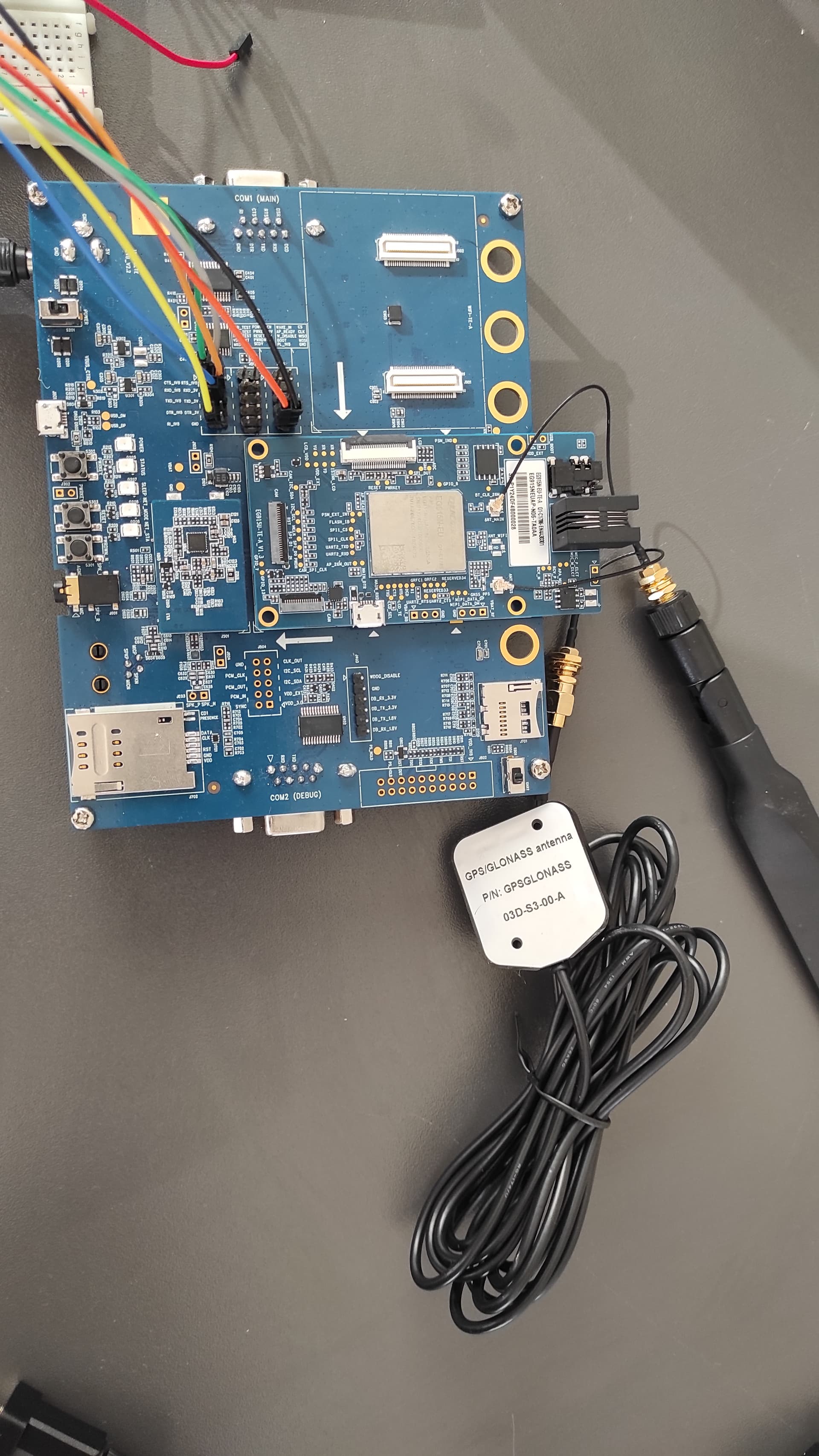

Hi, can i please have the schematic of UMTS & LTE EVB kit and EG915NEUAP board? I added the mentioned boards picture.

1733473579808
17334735798081920×3413 520 KB

2

Please check the message. I have sent them.
Please do not reply directly to my message.

3

Hi thank you for the schematics but i asked for the EG915N schematics not for EG915U. Can you also send them?

4

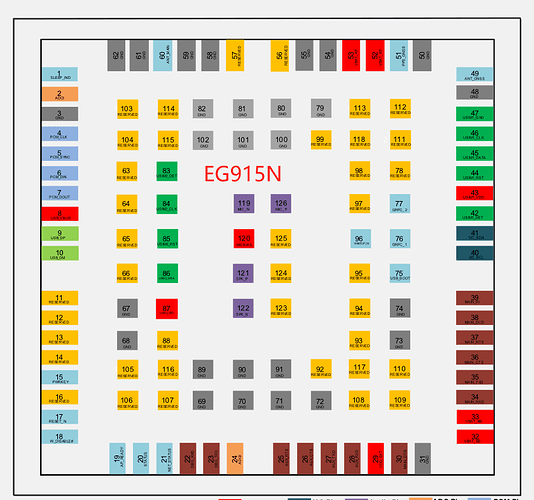

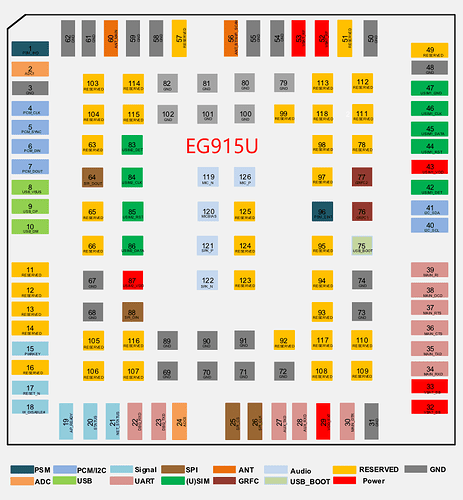

I think EG915N and EG915U shares with the same TE-A.

5

image766×826 88.7 KB

image841×786 77.7 KB

It is P2P.

6

Hello, would it be possible to have it too ? Best regards.

7

Can I have it too please?
