UART10 Pin Number Discrepancy Between UART Development Guide V1.1 and Hardware Design V1.2

IoT Modules Smart Module
,
1

Hi Quectel Team,

We are working on a new project using the SC668S and plan to use UART10 for data communication. While going through the documentation, I noticed a discrepancy — the pin numbers listed for UART10 in the Quectel_SC668S_Series_Android_UART_Development_Guide_V1.1 and the Quectel_SC668S&SC696S_Series_Hardware_Design_V1.2 don’t match.

Could you confirm which document has the correct pin mapping for UART10?

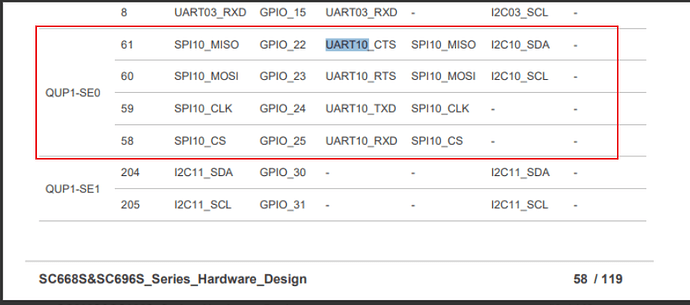

image707×272 23.5 KB

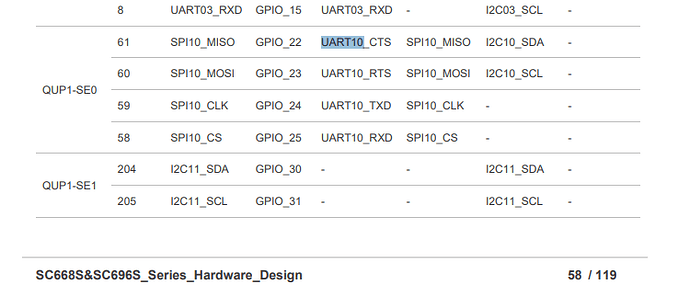

image750×322 25.4 KB

2

We will check, and I want to confirm do you have the E-service system account?

If so, please build a ticket for this problem, in the E-service we have more colleagues which can help y solve this problem quickly

3

Yes I have. I will post it there

4

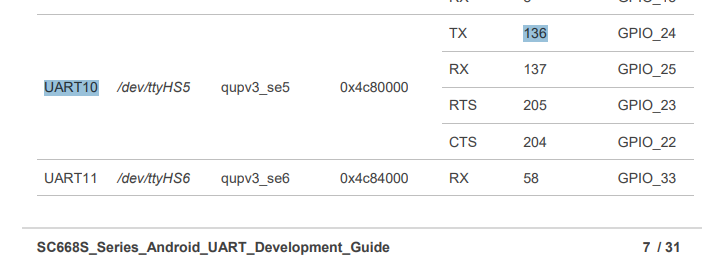

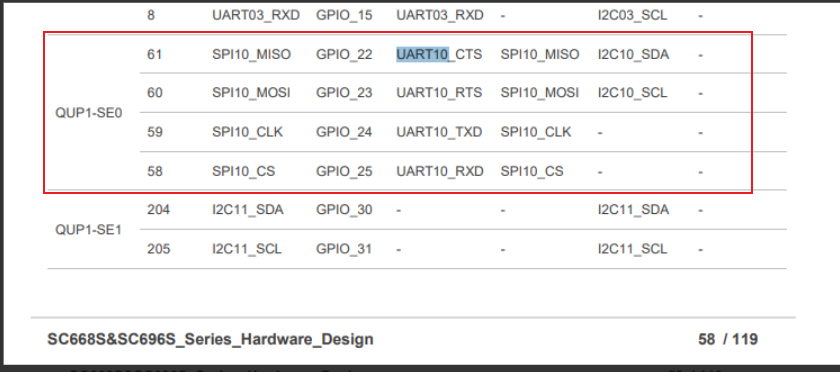

image840×372 68.2 KB

The PIN 58 59 60 61 are for the UART10
And pleaseto get the newest documents, the UART development you used is too old to use
