Mechanism and Application Reference of normal & enhanced Sleep and eDRX & PSM Mode for CAT M1 with BG95-M2 modem

IoT Modules LPWA Module
1

Any application references for eDRX that gives details explanation about its implementation and working. It will be helpful if it combined with PSM.

is it possible to get more details on edrx cycle and PTW combination current consumption.
e.g.

e-I-DRX = 143.36 s
@ PTW = 81.92 s,
DRX = 1.28 s

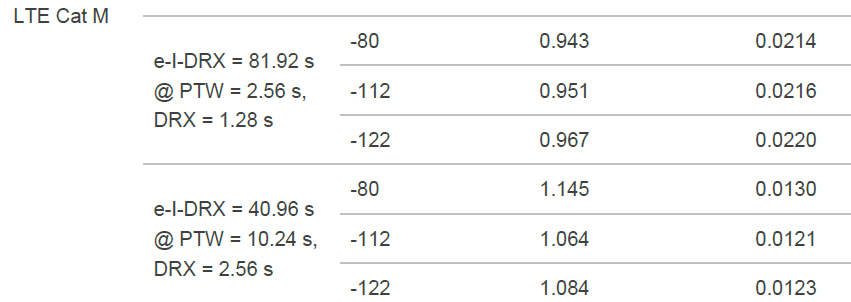

i have only this much information as show below in image.

image851×302 14.6 KB

Is there any datasheet for BG95-M2 modem?

Thank you

2

Hi @devendra.chaudhari

May this low power user guide help you a lot.

Quectel_BG95-M3_Low_Power_Design_Guide_V1.0.pdf (430.5 KB)
