RG520F-EU 4x4 MIMO

IoT Modules 5G Module
1

Hello - which LTE/5G bands does the RG520F-EU provide 4x4 MIMO capability?

Regards - Nic

2

Dear @nicsmith1979
There are so many combinations, please help to list which operator supports, I will check later.

3

B1, 3, 7, 8, 20, 32
n1, n8, n78

Also, which chipset does the RG520F-EU use, x62 or x65?

Thanks

4

Dear @nicsmith1979

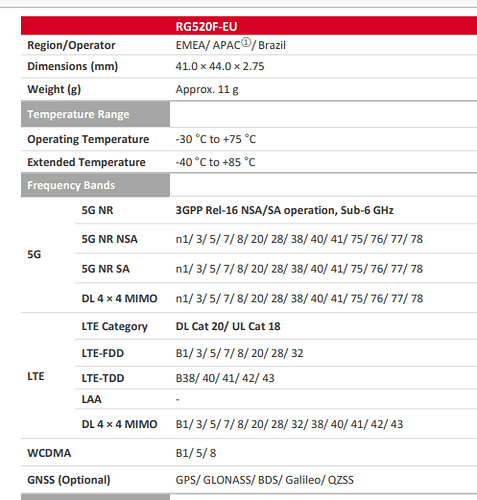

Please refer to it. RG520F-EU is SDX65.

image498×521 42.8 KB

1 Like
5

Thanks!! Does SDX65 only support 3x5G CA (2xTDD + 1xFDD) or is it capable of more?

7

Dear @nicsmith1979
I have sent to you via Message, please check.
