Request for Schematic and PCB Design Files for UMTS & LTE EVB Kit

Technical Subjects
1

Hello Quectel Support Team,

I am currently working with the UMTS & LTE EVB Kit and would like to request the following hardware design documents for reference and development purposes:

  1. Complete schematic diagram of the EVB
  2. PCB layout / PCB design files (if available)

I need these documents to better understand the hardware implementation

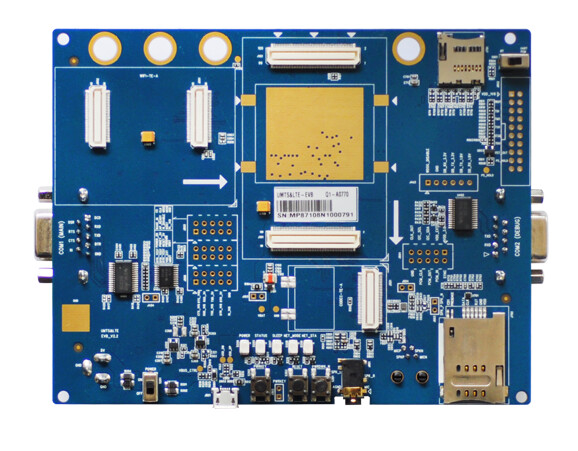

  1. image
    image578×451 101 KB
2
