Request for BG95-M3 Design Files (PCB-Mounted Module)

IoT Modules LPWA Module
1

Dear Team,

We are currently using the Quectel MC60 and plan to upgrade to the BG95-M3. Please share the BG95-M3 design files for our reference.

Note: We require PCB-mounted module design files only (e.g., reference schematic, layout guidelines, footprint/land pattern, and mechanical drawings).

Regards
Kannan

2

Dear Team,
Any update???

3

Hi,

You can find the files link below. :+1:

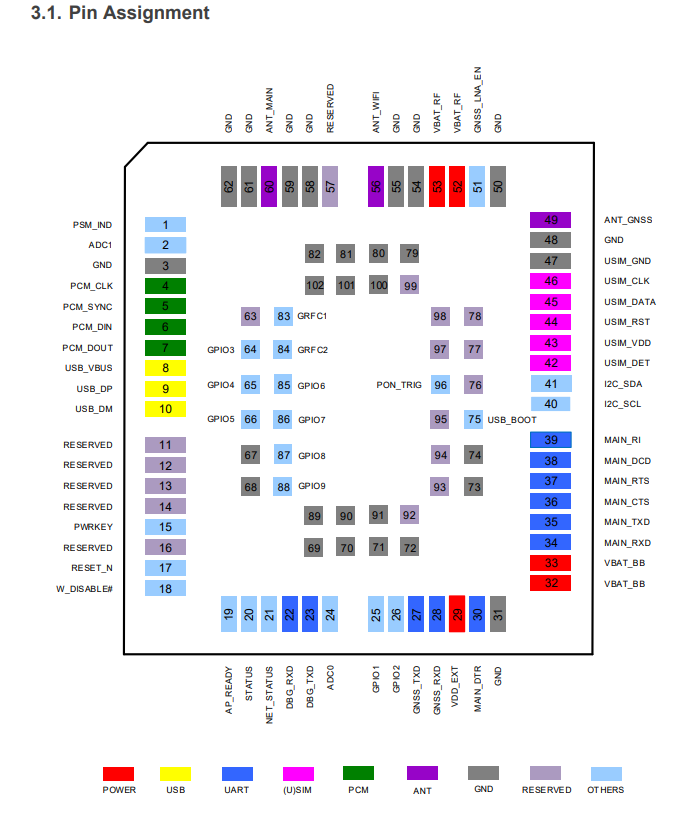

image690×816 73.3 KB

quectel_bg95xaeg915ueg91xq_series_compatible_design_v1-0.pdf (945.5 KB)
quectel_bg95_series_hardware_design_v1-6.pdf (1.9 MB)
quectel_bg95_seriesbg96_pcb_design_guidelines_v1-0.pdf (2.8 MB)
quectel_bg95-m3_mini_pcie_hardware_design_v1-1.pdf (1.3 MB)
