Good morning, I would like to measure power consumption of the L96 module by using its EVB.
Where is it possible to find schematics of such an evaluation board in order to check where to measure only the module supply current?
Thank you
Hi @Rigamonti , thank you for reaching out

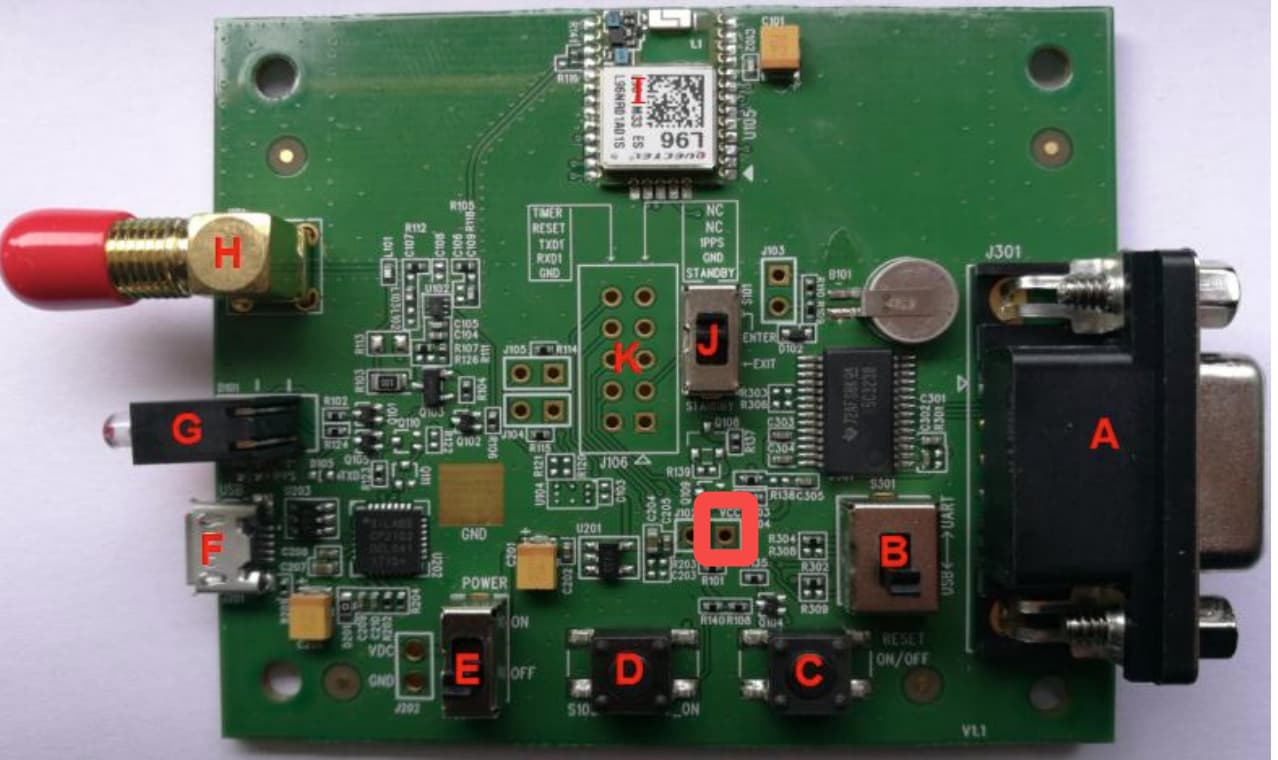

You can measure the module’s supply current by inserting the multimeter in series with the VCC line and GND, VCC is the main power input for the GNSS module. The VCC location is shown in the image below.

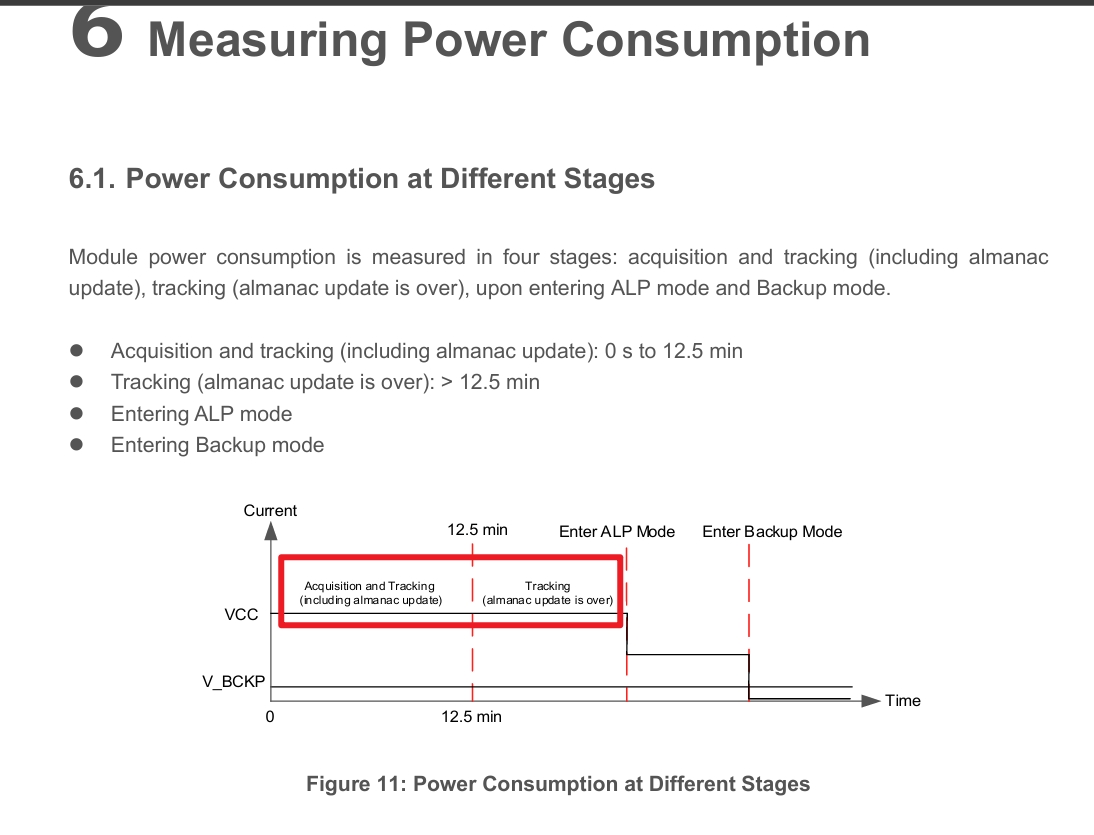

After inserting the multimeter, allow the module to get a fixed by placing it under open sky for more than 12.5 minutes before reading the power consumption.
Please let me know if you have any more questions
