Issue getting fix with L96-MM on custom PCB

IoT Modules GNSS Module
1

Hello,

I am try to get a fix using the L96 on a custom PCB. After 30-40 minutes of open skies, no satellites are seen as indicated by the GSV message. I am using the internal antenna and have verified that RF_in and RF_out are connected.

Previously I was able to get a fix when using a custom PCB that I had machine assembled. Now, I am testing a different but similar design where I am soldering the modules by hand with a hot plate. I am curious if this has anything to do with the issue?

I can provide hardware design schematics on request. Any help would be appreciated,

Noah

2

Hi Noah,

It’ recommended to follow PCB layout suggestion to avoid some interference resource when you design.
Please pay attention to keepout area which is required for RF performance.

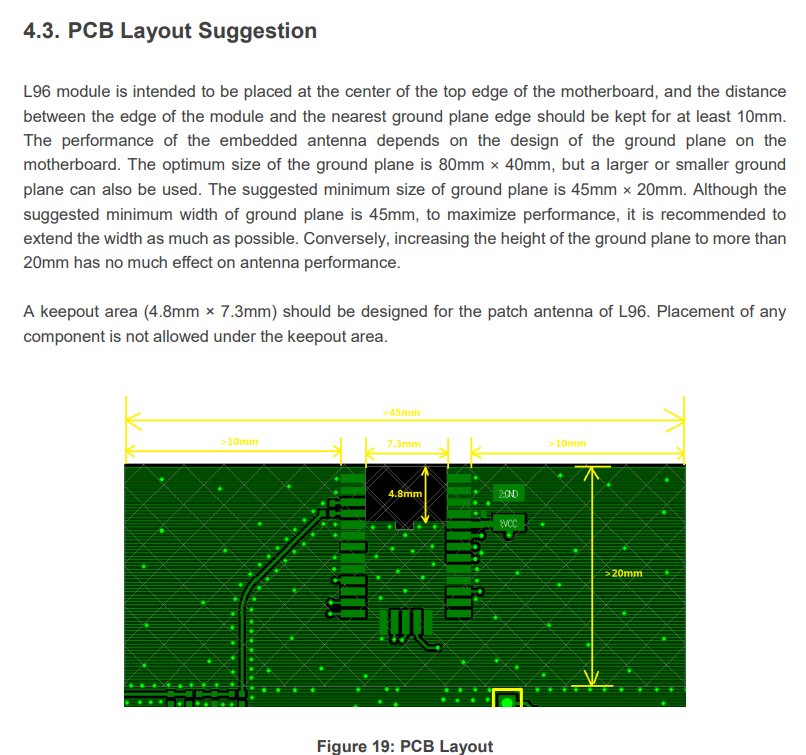

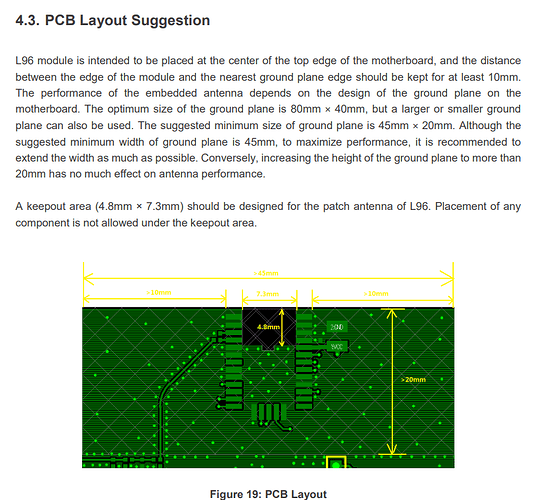

image806×755 119 KB

Best regards,
