I have a RM520NGLAA‑M20‑SGASA 5G module(pcie interface)
I’m trying to bring it up on NVIDIA Jetson AGX Orin platform
I have a driver provided by Quectel(pcie_mhi_adpl_qdss_v1.3.4)
[ 819.472260] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.4
[ 819.472808] mhi_q 0000:01:00.0: Adding to iommu group 56
[ 819.473028] mhi_pci_probe pci_dev->name = 0000:01:00.0, domain=0, bus=1, slot=0, vendor=17CB, device=0308
[ 819.473820] mhi_q 0000:01:00.0: BAR 0: assigned [mem 0x2728000000-0x2728000fff 64bit]
[ 819.475212] mhi_q 0000:01:00.0: enabling device (0000 -> 0002)
[ 819.476060] [I][mhi0][mhi_init_pci_dev] msi_required = 6, msi_allocated = 6, msi_irq = 302
[ 819.476087] [I][mhi0][mhi_power_up] dev_state:RESET
[ 819.476093] [I][mhi0][mhi_async_power_up] Requested to power on
[ 819.476223] [I][mhi0][mhi_alloc_coherent] size = 147456, dma_handle = fffc0000
[ 819.476229] [I][mhi0][mhi_init_dev_ctxt] mhi_ctxt->ctrl_seg = 00000000de96ed4e
[ 819.476564] [I][mhi0][mhi_async_power_up] dev_state:RESET ee:AMSS
[ 819.476587] [I][mhi0][mhi_pm_st_worker] Transition to state:READY
[ 819.476603] [I][mhi0][mhi_pm_st_worker] INVALID_EE -> AMSS
[ 819.476607] [I][mhi0][mhi_ready_state_transition] Waiting to enter READY state
[ 819.476676] [I][mhi0][mhi_async_power_up] Power on setup success
[ 819.476777] [I][mhi0][mhi_pci_show_link] LnkCap: Speed 16GT/s, Width x2
[ 819.476781] [I][mhi0][mhi_pci_show_link] LnkSta: Speed 8GT/s, Width x1
[ 819.476783] [I][mhi0][mhi_pci_probe] Return successful
[ 822.496291] [I][mhi0][mhi_ready_state_transition] Device in READY State
[ 822.496336] [I][mhi0][mhi_tryset_pm_state] Transition to pm state from:POR to:POR
[ 822.496358] [I][mhi0][mhi_init_mmio] Initializing MMIO
[ 822.496370] [I][mhi0][mhi_init_mmio] CHDBOFF:0x300
[ 822.496388] [I][mhi0][mhi_init_mmio] ERDBOFF:0x700
[ 822.496395] [I][mhi0][mhi_init_mmio] Programming all MMIO values.
Probe message shows success, but nothing comes further.
From the SDX55 PCIE bring-up document， I think something is not complete or went wrong

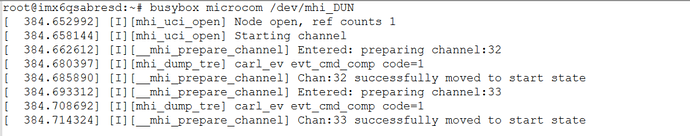

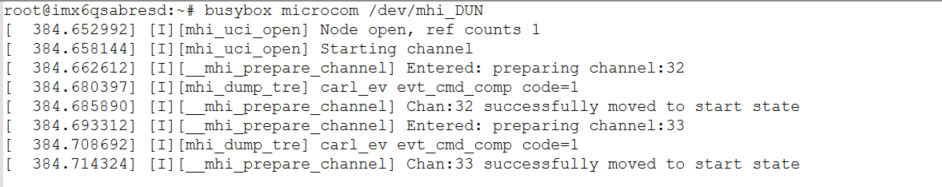

but in my device there is no such node under /dev
gemtek@tegra-ubuntu:/home$ ls /dev/mhi*
/dev/mhi_BHI
and using quectel-CM
gemtek@tegra-ubuntu:/home$ sudo ./quectel-CM
[12-10_02:05:36:389] QConnectManager_Linux_V1.6.2
[12-10_02:05:36:390] network interface '' or qmidev '' is not exist
[12-10_02:05:36:390] qmidevice_detect failed
[12-10_02:05:36:390] atdevice_detect failed
[12-10_02:05:36:390] qmidevice_detect failed
can’t open anything
Any idea what’s going on here?
Kevin
Please test with the lastest pcie_mhi driver.
Typically such issues are caused by an incorrect power-up sequence.
What’s the Linux kernel version. Can you show the lspci -v
Hi, Bean
My Linux version will be 5.15.148-tegra
Where can I get the latest pcie_mhi driver
and here is the lspci -v result
0000:00:00.0 PCI bridge: NVIDIA Corporation Device 229c (rev a1) (prog-if 00 [Normal decode])
Flags: bus master, fast devsel, latency 0, IRQ 204, IOMMU group 56
Bus: primary=00, secondary=01, subordinate=ff, sec-latency=0
I/O behind bridge: [disabled]
Memory behind bridge: 40000000-400fffff [size=1M]
Prefetchable memory behind bridge: [disabled]
Capabilities: <access denied>
Kernel driver in use: pcieport
Kernel modules: tegra_pcie_dma_test
0000:01:00.0 Unassigned class [ff00]: Qualcomm Device 0308
Subsystem: Qualcomm Device 5201
Flags: bus master, fast devsel, latency 0, IRQ 302, IOMMU group 56
Memory at 2728000000 (64-bit, non-prefetchable) [size=4K]
Memory at 2728001000 (64-bit, non-prefetchable) [size=4K]
Capabilities: <access denied>
Kernel driver in use: mhi_q
0007:00:00.0 PCI bridge: NVIDIA Corporation Device 229a (rev a1) (prog-if 00 [Normal decode])
Flags: bus master, fast devsel, latency 0, IRQ 208, IOMMU group 59
Bus: primary=00, secondary=01, subordinate=ff, sec-latency=0
I/O behind bridge: 00000000-00000fff [size=4K]
Memory behind bridge: 40000000-400fffff [size=1M]
Prefetchable memory behind bridge: [disabled]
Capabilities: <access denied>
Kernel driver in use: pcieport
Kernel modules: tegra_pcie_dma_test
0007:01:00.0 Ethernet controller: Intel Corporation I210 Gigabit Network Connection (rev 03)
Flags: bus master, fast devsel, latency 0, IRQ 208, IOMMU group 59
Memory at 3228000000 (32-bit, non-prefetchable) [size=512K]
I/O ports at 400000 [disabled] [size=32]
Memory at 3228080000 (32-bit, non-prefetchable) [size=16K]
Capabilities: <access denied>
Kernel driver in use: igb
Thanks
Please try the Quectel_Linux_PCIE_MHI_Driver_V1.3.8.zip.
Hi Bean
The results are the same
[26896.285436] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.8
[26896.308968] mhi_pci_probe pci_dev->name = 0000:01:00.0, domain=0, bus=1, slot=0, vendor=17CB, device=0308
[26896.309232] [I][mhi0][mhi_arch_set_bus_request] Setting bus request to index 1
[26896.309247] mhi_q 0000:01:00.0: BAR 0: assigned [mem 0x2728000000-0x2728000fff 64bit]
[26896.309826] [I][mhi0][mhi_init_pci_dev] msi_required = 4, msi_allocated = 4, msi_irq = 302
[26896.309843] [I][mhi0][mhi_power_up] dev_state:RESET
[26896.309846] [I][mhi0][mhi_async_power_up] Requested to power on
[26896.309917] [I][mhi0][mhi_alloc_coherent] size = 98304, dma_handle = fffc0000
[26896.309921] [I][mhi0][mhi_init_dev_ctxt] mhi_ctxt->ctrl_seg = 00000000d87f1f65
[26896.310151] [I][mhi0][mhi_async_power_up] dev_state:RESET ee:PBL
[26896.310201] [I][mhi0][mhi_async_power_up] Power on setup success
[26896.310301] [I][mhi0][mhi_pci_show_link] LnkCap: Speed 16GT/s, Width x2
[26896.310303] [I][mhi0][mhi_pci_show_link] LnkSta: Speed 8GT/s, Width x1
[26896.310305] [I][mhi0][mhi_pci_probe] Return successful
But I mark
rmnet_nss_callbacks function in the code since there are compilation errors
not sure if that affect anything
here is the result for sudo lspci -v with more detail
0000:01:00.0 Unassigned class [ff00]: Qualcomm Device 0308
Subsystem: Qualcomm Device 5201
Flags: bus master, fast devsel, latency 0, IRQ 302, IOMMU group 56
Memory at 2728000000 (64-bit, non-prefetchable) [size=4K]
Memory at 2728001000 (64-bit, non-prefetchable) [size=4K]
Capabilities: [40] Power Management version 3
Capabilities: [50] MSI: Enable+ Count=4/32 Maskable+ 64bit+
Capabilities: [70] Express Endpoint, MSI 00
Capabilities: [100] Advanced Error Reporting
Capabilities: [148] Secondary PCI Express
Capabilities: [168] Physical Layer 16.0 GT/s <?>
Capabilities: [18c] Lane Margining at the Receiver <?>
Capabilities: [19c] Transaction Processing Hints
Capabilities: [228] Latency Tolerance Reporting
Capabilities: [230] L1 PM Substates
Capabilities: [240] Data Link Feature <?>
Kernel driver in use: mhi_q
Thanks
Kevin
According to that it need the correct power-up sequence.
I thought if my device already recognized pcie device, the power-up sequence is correct.
Do I need a firmware to make it work?
Thanks
Kevin
It should be problem of the power-up sequence.
It is RM520NGLAA so only when the module boot into Linux kernel so that it can work as PCIe EP device.
I think you can try to power up the module in the bootloader.
Hi
After adding gpioset in UEFI to trigger 5G module on pin, the result is still the same, showing unassigned class

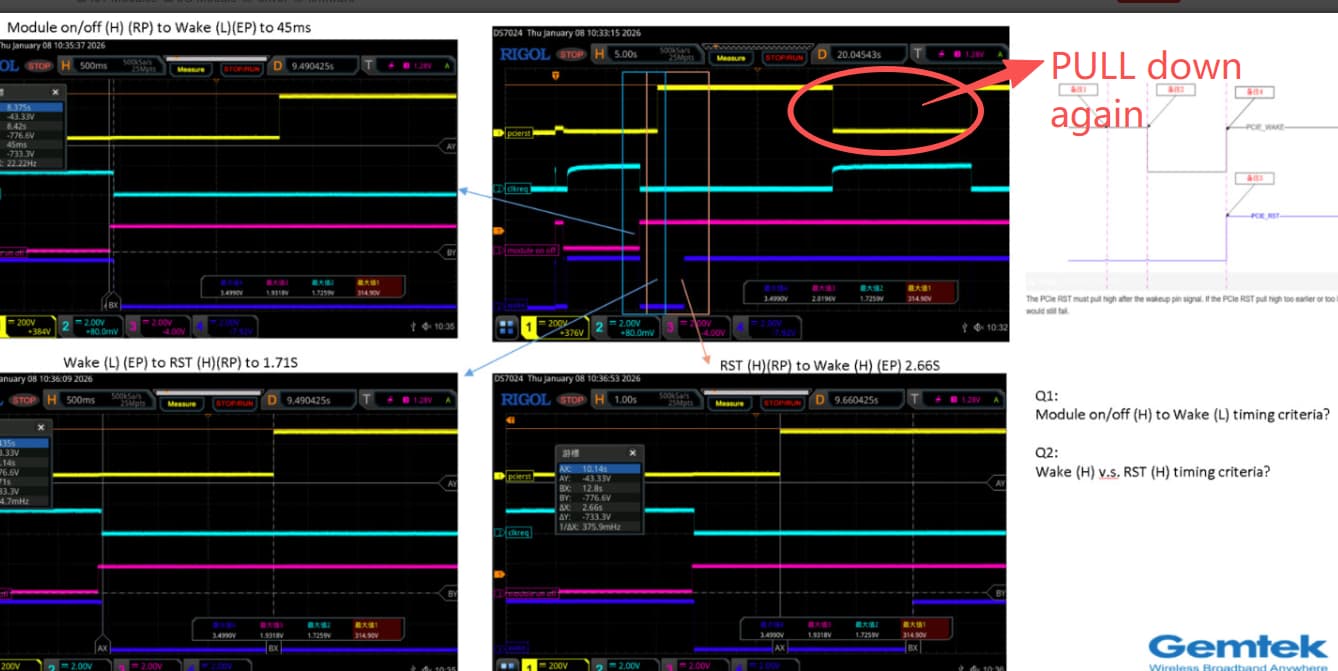

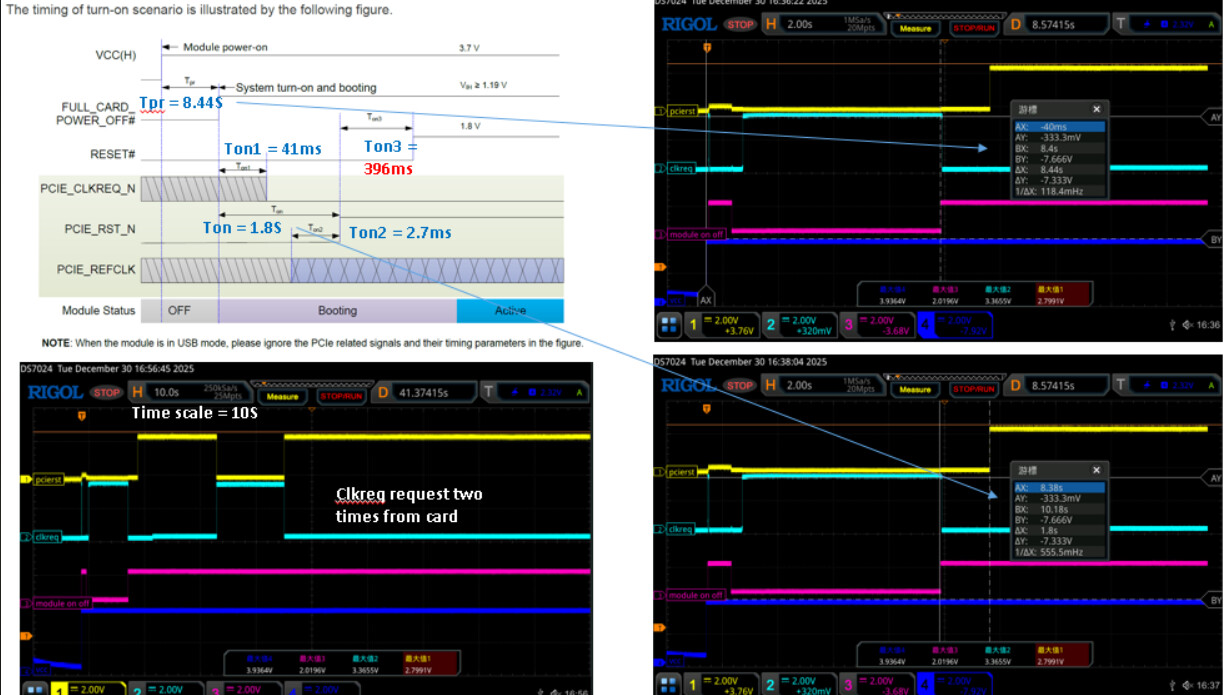

Here is the result measured with scope， it should match the time sequence from datasheet
(Weird is that there are two times Clkreq requests from the card)
yellow: pcie rst
light blue: clk req
pink: module on/off
dark blue: vcc
Can you give us some guide
Kevin

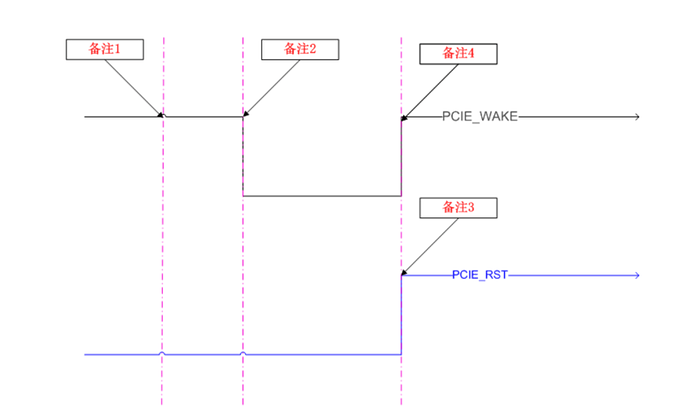

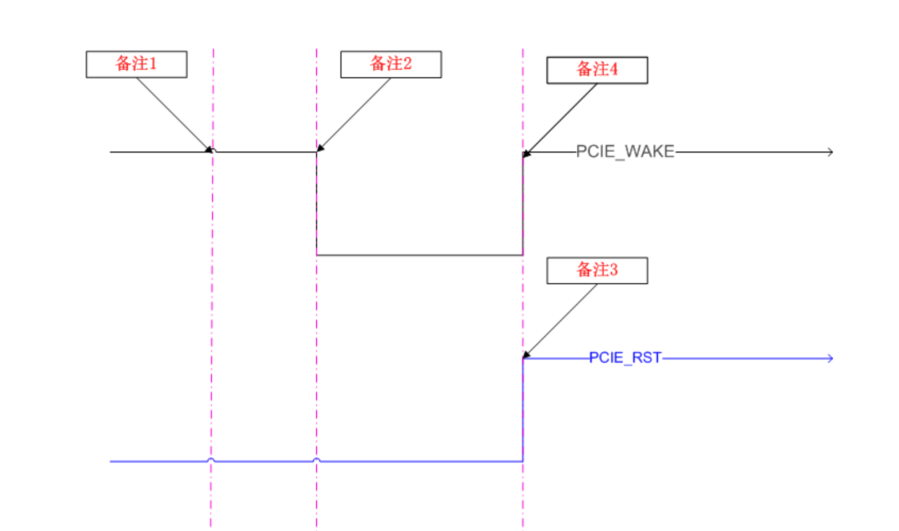

The PCIe RST must pull high after the wakeup pin signal. If the PCIe RST pull high too earlier or too late it would still fail.
Hi

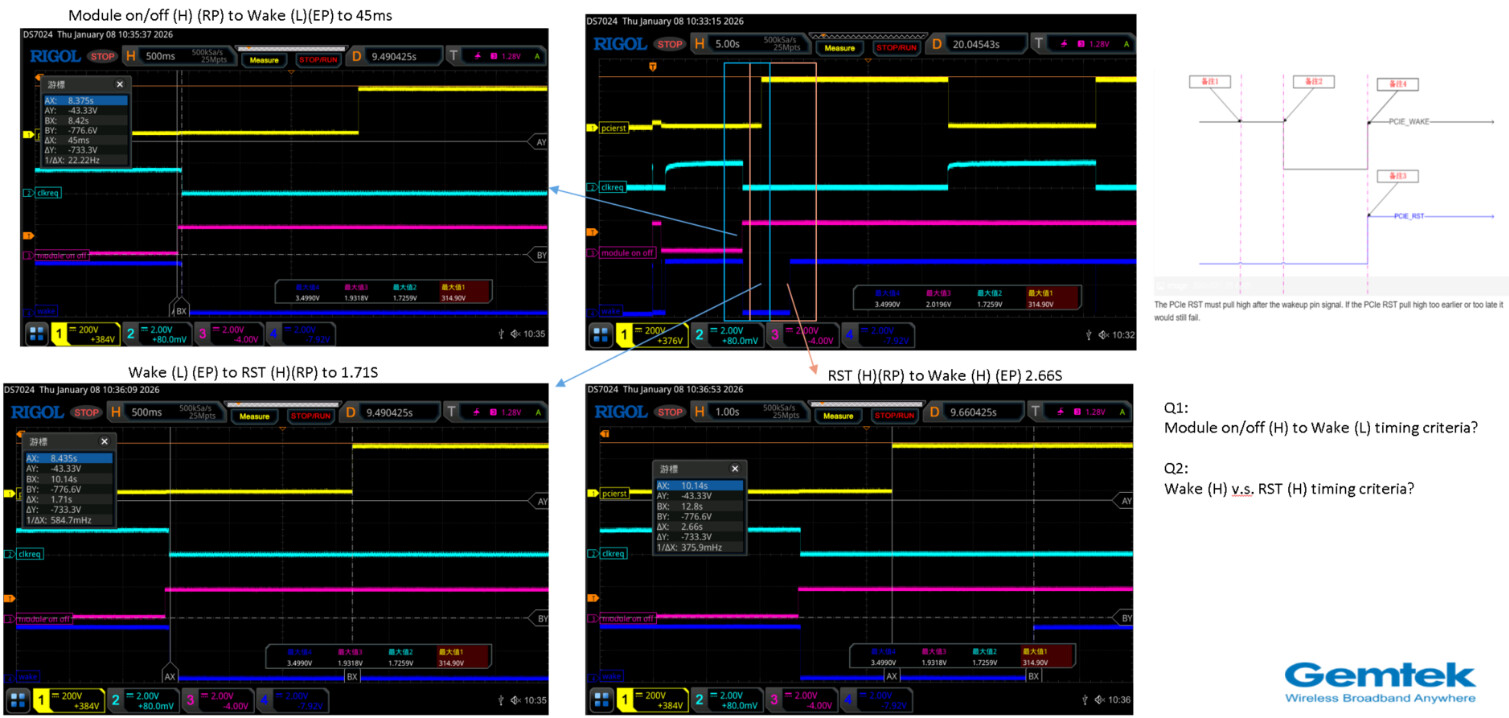

yellow: pcie_rst
light_blue: clkreq
pink:module on/off
dark blue:pcie_wake
Can you tell us what is the criteria for these interval
Kevin
My current understanding is that PERST is first asserted in the bootloader, but this should actually be done in the kernel. The bootloader’s PCIe support is uncertain, so that code ought to be removed. From past experience, we can safely power the module in the bootloader and defer PERST until the kernel takes over.
