Bg950a-gl pon_trig

IoT Modules LPWA Module
1

Hi,

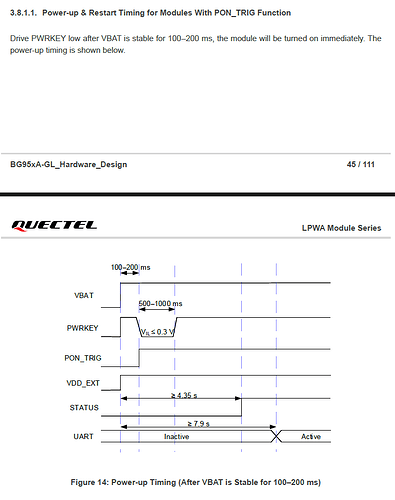

I am currently working on a project with BG950AGLAA-N06-SGNSA module. The power on procedure time graph mentioned PWRKEY and PON_TRIG pin.

image740×936 30.2 KB

How to determine if the module has PON_TRIG function or not?

Thanks!

2

Hi @MaxS
You can check this information via HW document.

3

Hi Mikey,

Thanks for you reply.

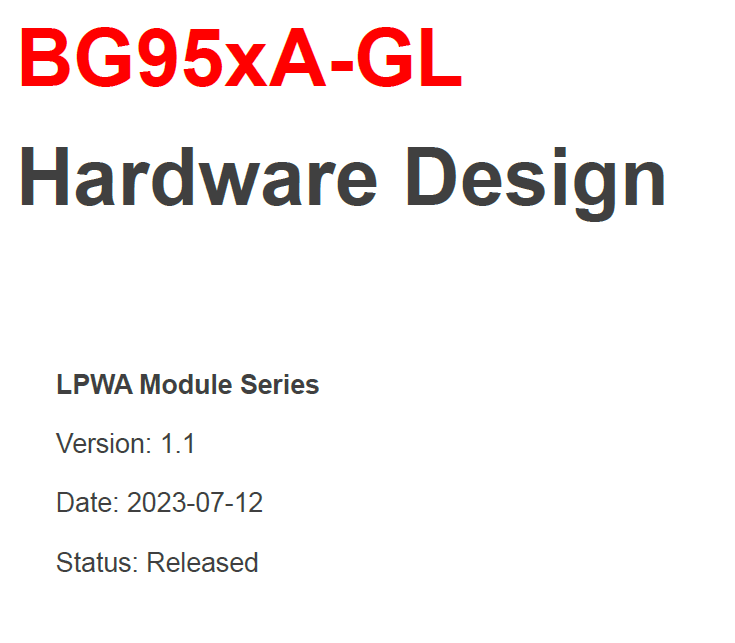

The waveform I attached previously was from the Hardware Design Doc:

image735×643 17.5 KB

But the doc does not specify how to tell the difference on hardware. The module I am using now is BG950AGLAA-N06-SGNSA, does this suggest PON_TRIG functionality, or if there is a way to tell from serial number?

4

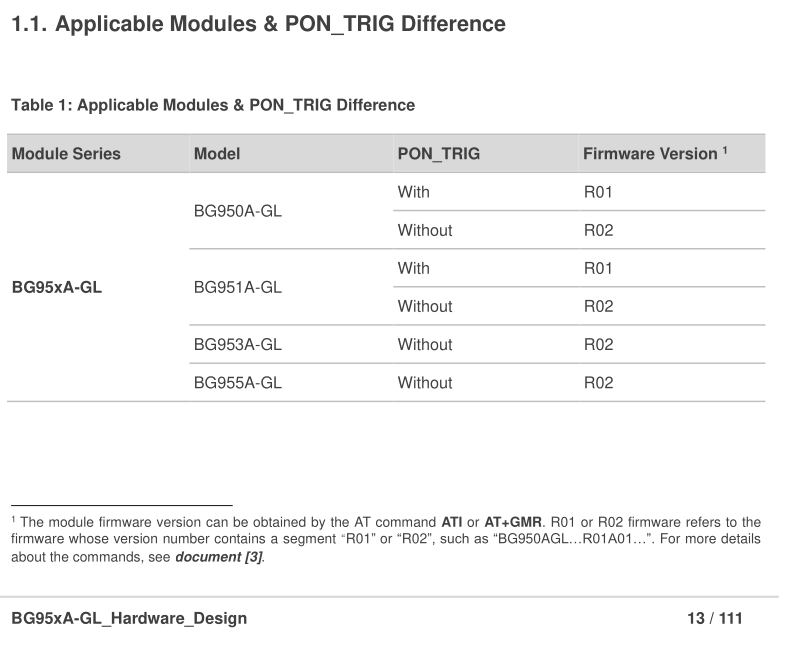

Firmware version R01 supports PON_TRIG

image788×645 25.7 KB

5

After fixing some hardware issues, AT+GMR response is “BG950AGLAAR02A01”. R02 means PON_TRIG is not used. I tried to toggle it anyway and there is no difference. So it looks ok to leave it unconnected and the modem can still enter PSM and wake up properly.
